Implement OAuth 2.0 authorization code flow

This recipe shows how to implement the OAuth 2.0 authorization code flow to enable secure user login via Banqup One—useful, for example, when adding your extension to Banqup Store and needing to integrate the Banqup One login process into your app.
The recipe walks you through the essential steps to authenticate users and retrieve access tokens for authorized API access.

Prerequisites

You have Postman installed.
You have successfully registered on Banqup One app.
You have an account and an app on Banqup Developer Portal.
Recommended: Set up a new, dedicated app specifically for the authorization code flow.

Step 2: Activate redirect URI

The redirect URI tells the authorization server where to send the user after access is granted.
You can activate one or more URIs in this API request.

Endpoint: POST /oauth2/activate_redirect

Request body: View documentation

To authenticate, generate a bearer token using these steps.

curl --location 'https://{{serverURL}}/oauth2/activate_redirect' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer YOUR_TOKEN' \
--data '{
"redirect_uri": ["www.banqup.com"]
}'

Successful response:

{
    "message": "Redirect created successfully.",
    "redirect_uri": [
        "www.banqup.com"
    ]
}

Update redirect URIs

Endpoint: PUT /oauth2/update_redirect

Request body: View documentation

curl --location --request PUT 'https://{{serverURL}}/oauth2/update_redirect' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer YOUR_TOKEN' \
--data '{
"redirect_uri": ["https://www.unifiedpost.com"]
}'

Successful response:

{
    "message": "Redirect URI updated successfully.",
    "redirect_uri": [
        "https://www.unifiedpost.com"
    ]
}

Step 3: Generate access token

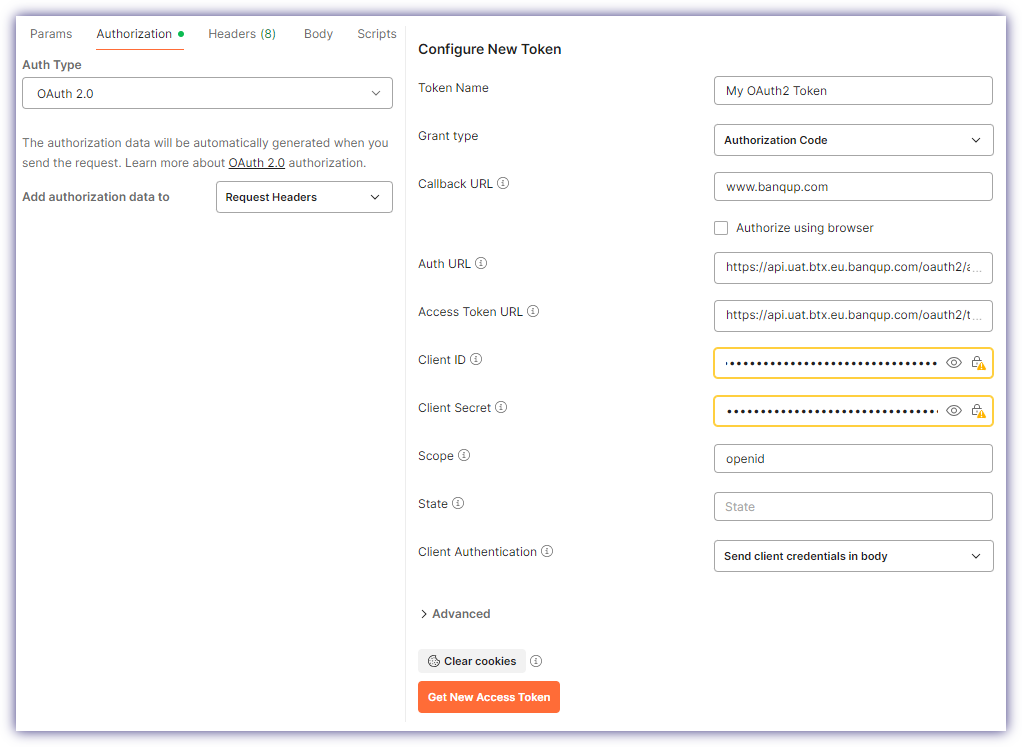

In Postman, select the OAuth2 authentication type and fill in the necessary data in the Authorization tab.
Then, click on Get new access token button.

Authorization data

Element	Value
Token name	e.g. My OAuth2 Token
Grant type	Authorization Code
Callback URL	Needs to be the redirect URI activated in the previous step.
Auth URL
Access token URL
Client Id	Use the API key from the app created on the Developer Portal.
Client secret	Use the client secret from the app created on the Developer Portal.
Scope	openid
Client authentication	Send client credentials in body

Generate access token

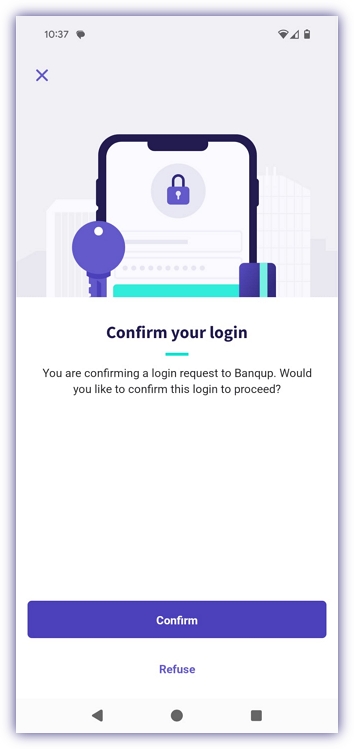

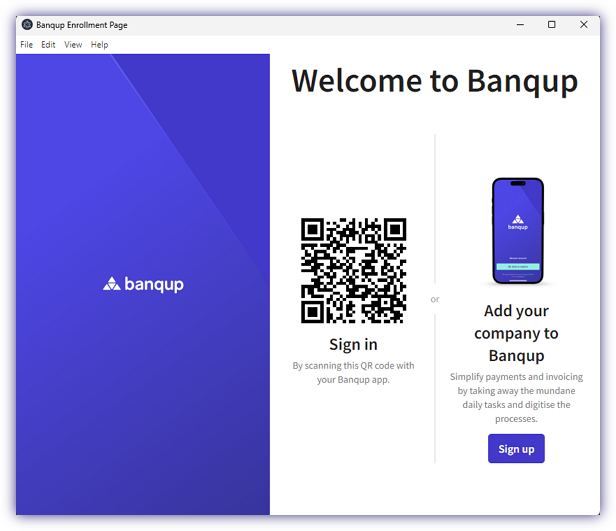

Scan the QR code that appears on the pop-up window with your Banqup mobile app, and then confirm your login.

Banqup sign in Confirm login

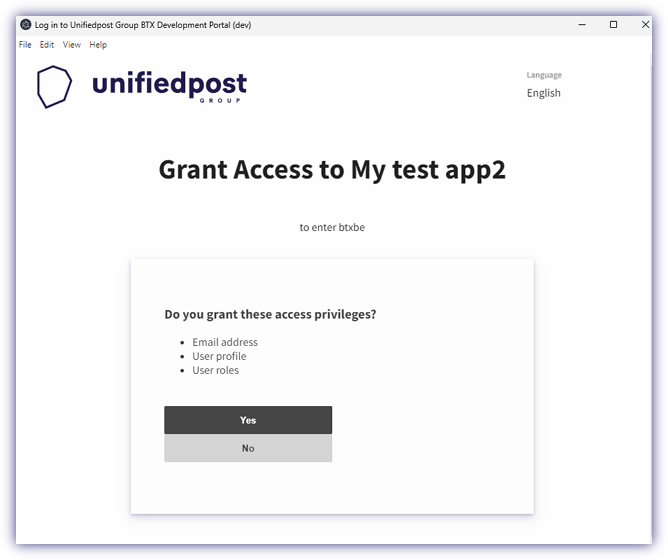

Only at first login, grant access to the user accessing the space.

Provide consent

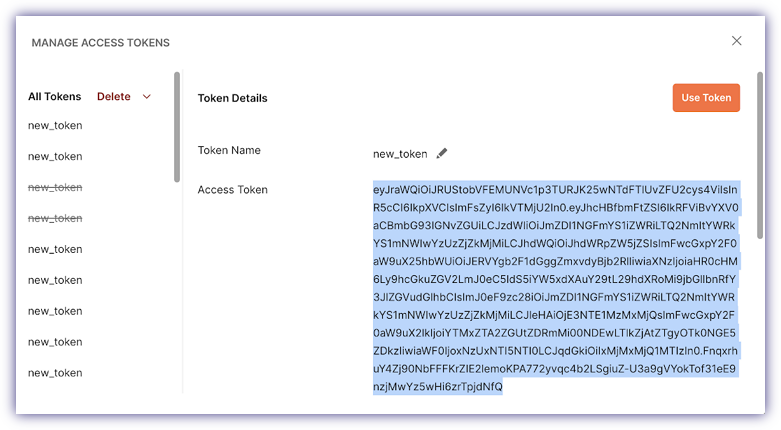

In Postman, the access token is generated and will be used to give the user access to Banqup.

Access token
